Enhanced Closed Loop Management System
S3S tank systems combine multi-compartment fluid handling, chemical mixing, and solids removal in a single transportable load. One system handles any drilling fluid and most slurry waste, moving between air/mist, floc-water, water-based mud, and oil-based mud without changing equipment on location.
Tank system specifications
| Model | Tank volume (bbl) | Compartments | Footprint (L × W) | Height | Equipment | Suction | Weight (lb) | Electrical | Enquire |
|---|---|---|---|---|---|---|---|---|---|

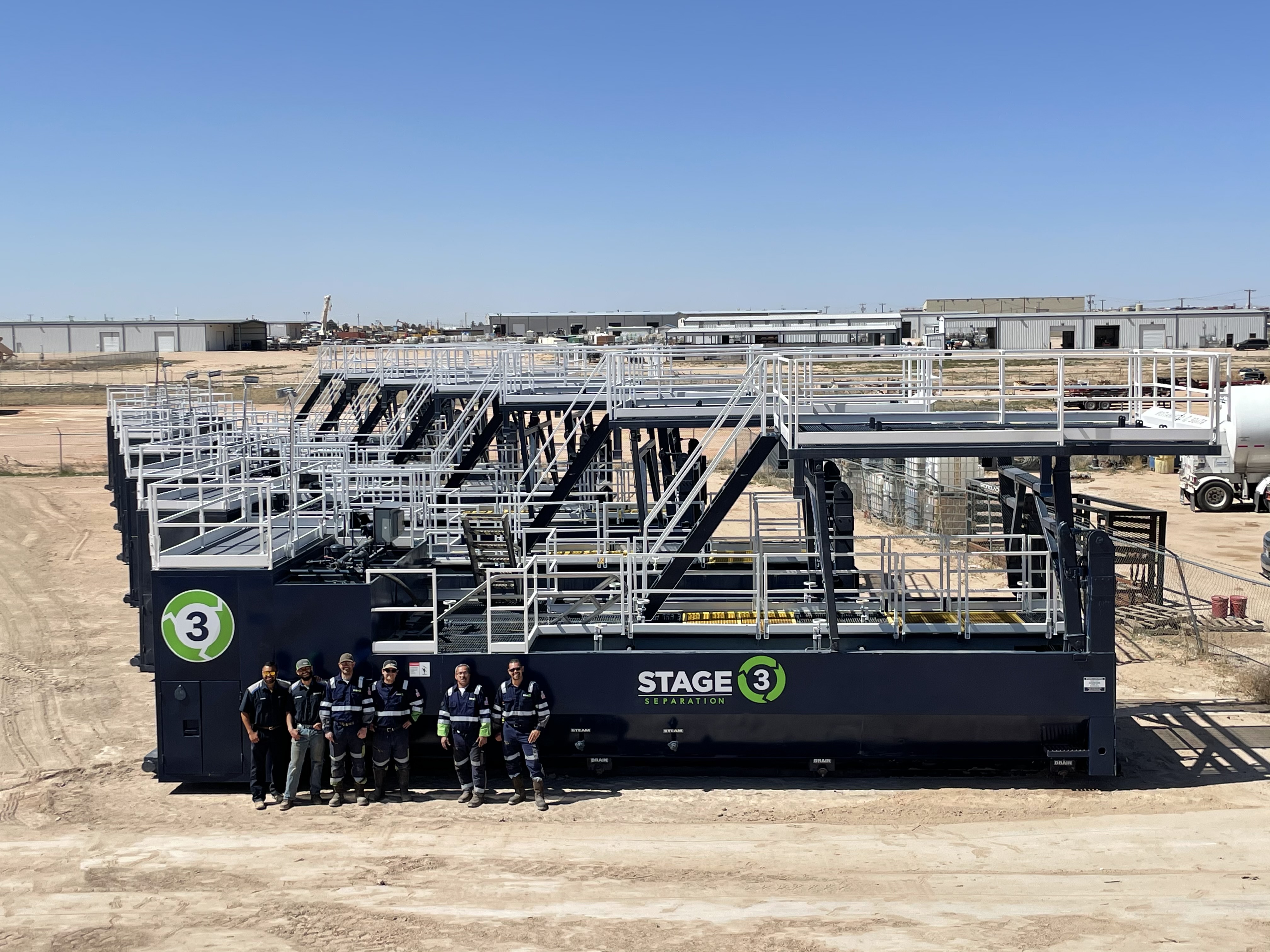

| BOS III closed loop tank system | 216 flocculation, plus 2 × 15 polymer injection | 9 cells, each can be isolated | 41 ft 3 in × 12 ft 6 in shipping, 44 ft 3 in × 12 ft 6 in working | 11 ft 6 in shipping, 18 ft working | Dual centrifuge platform, heated pump room with centrifuge feed and polymer injection pumps | Not listed | 34,000 tank only | Not listed | Enquire about the BOS III closed loop tank system |
| Single Tank Skid (STS) | 12.64 | Single tank | 78 × 64.375 in skid | Tank 82.5 in, overall 112.69 in to 130.56 in | 5 HP right-angle agitator, drop bearing | Two 6 in nominal Victaulic, one reduced to 3 in | 2,775.5 | 480 VAC | Enquire about the Single Tank Skid (STS) |
BOS III moves as a single load on most jobs and carries two centrifuges; its data sheet pairs it with the BOS 20 and BOS 40. The STS is carbon steel A36 with removable leg extensions and OSHA-compliant steps and platform. Data sheets: BOS III, Single Tank Skid.
Talk to an S3S tank systems expert.
S3S configures your tank system and supporting equipment around your fluid program, operating targets, and available pad space, with on-site support ranging from a single technician to a full operating crew. S3S designs the flocculation and polymer dosing program from lab tests of your fluid.
