M2 Fluid Metering System

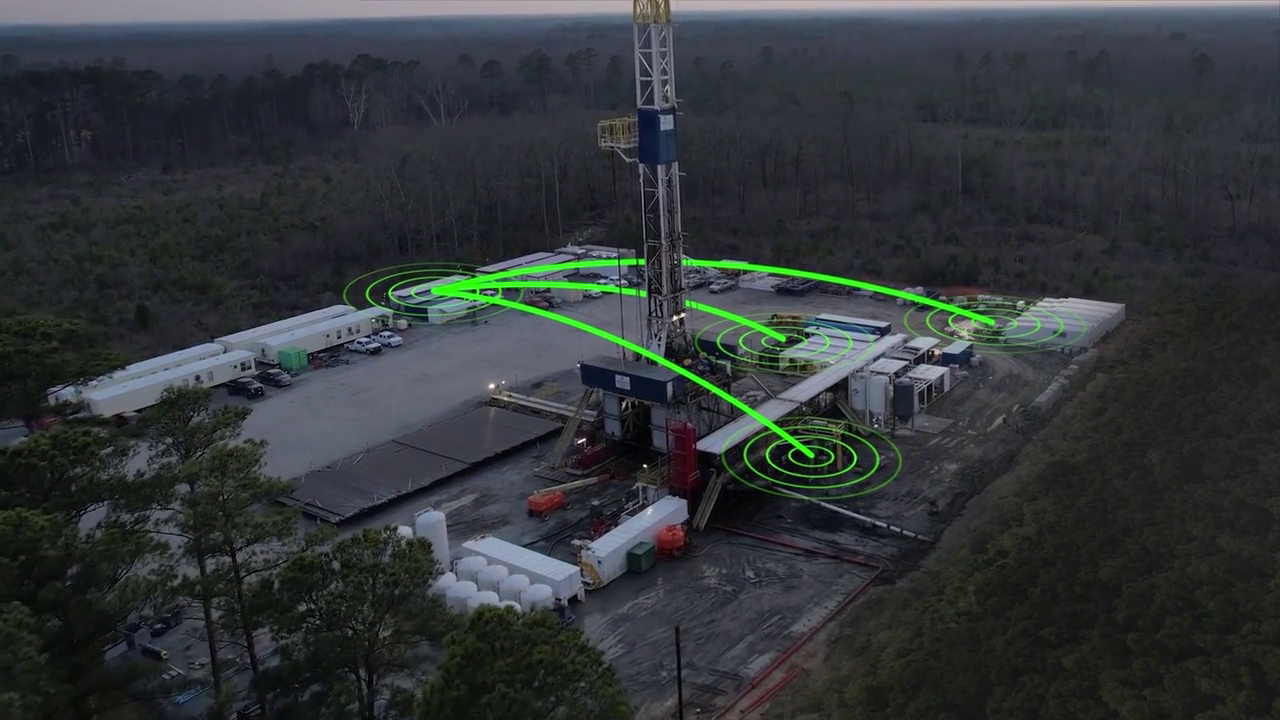

The S3S M2 system tracks tank levels, fluid density, and flow volumes to quantify processing, waste, recycling, and reuse. Diesel meter skids and LoadScan add fuel and truckload measurement.
Measurement equipment specifications
| Model | Measures | Accuracy | Power | Data link | Max pressure (psi) | Piping | Weight (lb) | Enquire |
|---|---|---|---|---|---|---|---|---|
| M2 Measure/Monitor system | Tank levels, fluid density, volumetric flow, dilution, equipment vibration and G-force | Not listed | Not listed | Not listed | Not listed | Not listed | Not listed | Enquire about the M2 Measure/Monitor system |
| S3S-SIS IoT skid | Connects the burn-rate meter and up to 4 offload meters to the cloud | Not listed | 120 VAC, 1 ph, 60 Hz, NEMA 5-15 | LTE, 5G, Wi-Fi, LAN | Not listed | Not listed | 400 | Enquire about the S3S-SIS IoT skid |
| S3S-MS-D-1 diesel meter skid (1 in) | Rig generator diesel burn rate, gpm | ±0.1% or better | 120 VAC, 1 ph, 60 Hz, NEMA 5-15 | Through the S3S-SIS | 150 | SS-304 (ASTM A312), 20 mesh strainer | 436 | Enquire about the S3S-MS-D-1 diesel meter skid (1 in) |
| S3S-MS-D-3 diesel meter skid (3 in) | Volume of each diesel delivery, gal | ±0.1% | 24 VDC from the S3S-MS-D-1, Meltric plug | Through the S3S-SIS | 150 | Carbon steel (ASTM A53), 20 mesh strainer | 525 | Enquire about the S3S-MS-D-3 diesel meter skid (3 in) |
| LoadScan volume scanner | Truckload volume, non-contact drive-through scan | Within 1% | Not listed | Not listed | Not listed | Not listed | Not listed | Enquire about the LoadScan volume scanner |
LoadScan is supplied through S3S's partnership with LoadScan. Data sheets: M2 brochure, diesel metering, LoadScan.
Talk to an S3S measurement expert.
S3S configures M2 around your fluid streams, equipment, fuel flows, and reporting requirements. Our technicians install, operate, and support the system throughout your project, delivering the data you need to track performance and verify results.
